Integrated Circuit (IC) Package Types

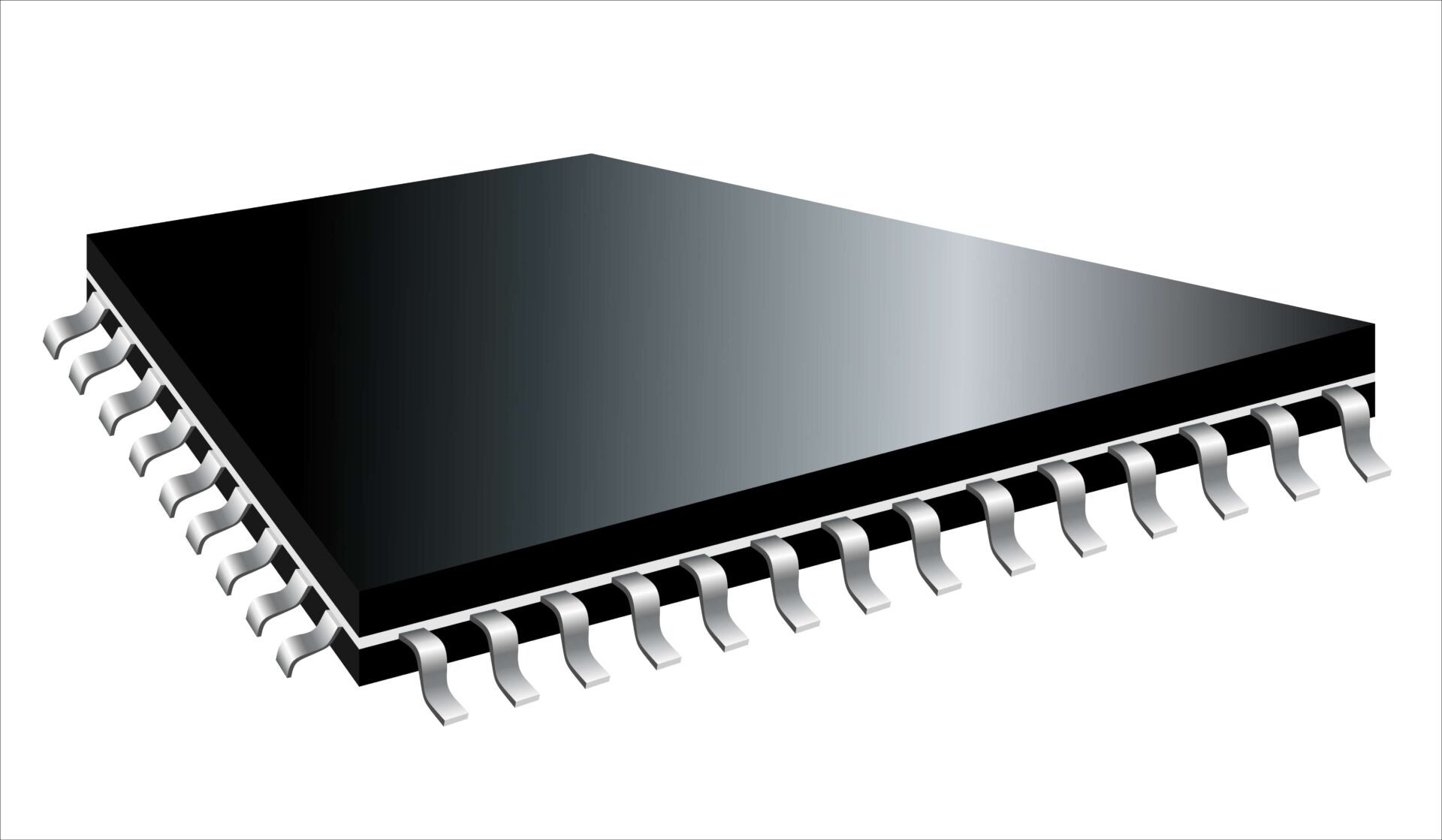

Quad In-line: A popular integrated circuit (IC) package type

Integrated circuit (IC) packages are the physical containers that enclose and protect chips. They provide an electrical connection between the chip and the printed circuit board (PCB) and protect against environmental factors such as moisture, dust, and mechanical stress. This article examines IC package types and provides guidelines for choosing the right packaging for your design.

IC packages can be mounted to the PCB in various ways, including through-hole, surface-mount, and ball grid array (BGA). Through-hole packages have pins that extend through holes in the PCB, whereas surface-mount packages are mounted directly onto the PCB’s surface. BGA packages have solder balls on the bottom, which serve as the electrical connections between the IC and the PCB.

The choice of IC package type depends on factors such as the size and shape of the IC, the number of connections, and the application. IC packaging determines an electronic system’s performance, reliability, and cost.

Common Integrated Circuit Package Types

There are various IC package types, each with specific characteristics and advantages. Here are the most common IC package types:

Dual In-line Package (DIP): DIP is one of the oldest and most popular through-hole package types. It has two parallel rows of pins with rectangular housing. DIP IC packages are easy to use and replace and are widely used in prototyping applications.

Small Outline Package (SOP): The SOP package is a smaller version of the DIP package designed for surface mounting. It has a smaller pitch (distance between pins) than the DIP, allowing more pins to be packed into a smaller space. It is easier to assemble for mass production with reflow soldering than DIP.

Quad Flat Package (QFP): The QFP package is a surface-mount package that has a square or rectangular shape. It has pins on all four sides, making connecting to the PCB easier. It has a high pin count, allowing for many connections with the PCP. QFP packages are commonly used in microcontrollers and other digital ICs.

Quad Flat No-Leads Package (QFN): The QFN package does not have pins on the sides. All connections are located at the bottom of the package. An exposed thermal pad on the bottom facilitates heat transfer, and shorter bond wire lengths provide lower inductance than leaded packages.

Ball Grid Array (BGA) Package: The BGA package has a grid of solder balls on the bottom, connecting the package to the PCB. It conducts heat into the PCB more effectively and has lower inductance, which results in increased electrical performance. It is often used in high-density ICs, such as microprocessors and graphics, and memory chips.

Small Outline Transistor (SOT) Package: The SOT packet is rectangular and usually has three or four pins extending from the package’s bottom. This surface-mount package is designed to be smaller and lighter than traditional through-hole packages, making them suitable for transistors, diodes, and voltage regulators.

Chip Scale Package (CSP): The CSP is also a surface-mount IC package designed to be as small as possible while still allowing for the necessary connections to the PCB. It is commonly used in mobile devices, laptops, and digital cameras.

These are just some of the IC package types. Many other package types are available, each with pros and cons as well.

Guidelines for Choosing the Right IC Package

When choosing the right IC package, there are several factors to consider:

• Pin Count: A higher pin count is typically required for more complex ICs.
• Size: The size of the IC package should be compatible with the available space on the PCB.
• Manufacturing Specifications: The IC package should be compatible with the manufacturing process and equipment used to produce the PCB.
• Thermal Management: The IC’s power dissipation and the environment’s ambient temperature will determine the need for a heat sink or other cooling measures.
• Electrical Performance: The electrical performance of the IC should meet the application’s requirements, such as operating voltage, current, speed, and noise immunity.
• Availability and Cost: The IC package’s availability and cost should be considered when selecting the right package.
• Environmental Considerations: The IC package needs to meet environmental requirements, including resistance to moisture, dust, or extreme temperatures.

When selecting an IC package, a balance should be struck between performance, cost, and manufacturability.
