Capacitors for High Frequency Applications: Types and Features for RF Circuits

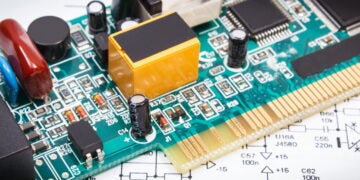

Capacitors and other components on an RF circuit

In high-frequency applications such as radio frequency (RF) and microwave (MW) circuits, capacitors play a critical role in filtering, decoupling, and impedance matching. Choosing a suitable capacitor is essential for ensuring the stability and performance of these circuits. When selecting capacitors for high-frequency applications, several features should be considered:

Low ESR and ESL: Effective series resistance (ESR) and effective series inductance (ESL) are crucial during operation at high frequencies to help avoid power loss. Low ESR decreases the heat generated and thus lowers power loss, while low ESL makes the capacitor work more effectively at high frequency without unnecessary phase shifts or distortion of the signals.
High SRF: The self-resonant frequency (SRF) is the frequency at which the capacitor’s inductive and capacitive reactances cancel each other out, making the component purely resistive. Beyond this point, the capacitor behaves more like an inductor. A high SRF ensures the capacitor remains effective within the desired frequency range.
High Ripple Current Handling: Capacitors in RF applications are often subjected to high ripple currents. The ability to withstand these currents without excessive heating or failure is critical for maintaining performance and reliability.
Temperature Stability: High-frequency capacitors must maintain stable performance across a wide temperature range, as fluctuations in temperature can affect capacitance values, leading to variations in circuit behavior. This is particularly important in RF circuits that operate in varying environmental conditions.
Minimal Dielectric Loss: Dielectric loss refers to the energy lost as heat within the capacitor due to imperfections in the dielectric material. Low dielectric loss is essential in high-frequency circuits to ensure efficiency and prevent signal degradation.

High Frequency Capacitor Types

The table below lists the high frequency capacitor types, with a focus on their features, benefits, and use cases.

Capacitors for High Frequency Applications
Capacitor Type	Features	Benefits	Use Cases
Multilayer Ceramic Capacitor (MLCC)	Low ESR, low ESL, high SRF, stable over the wide temperature range	+ Allows for detailed and realistic designs + Facilitates intricate component creation	ATCx Electronics attendees will learn how to optimize new electronic design tools to shorten design times and collaborate more efficiently.
Film Capacitor	Low dielectric loss, temperature stability, moderate ESR	Excellent stability, suitable for high-voltage applications	Impedance matching, signal smoothing in RF circuits, power supplies
Tantalum Capacitor	High capacitance density, moderate ESR and ESL	Higher capacitance in small size, long-term reliability	Power supply decoupling, low-frequency filtering in RF systems
Silver Mica Capacitors	Very low ESR, high precision, excellent temperature stability	High accuracy, stable over wide frequencies, low signal distortion	Resonant circuits, oscillators, precision RF filters
Aluminum Electrolytic Capacitor	High capacitance, high ESR and ESL, low SRF	Large capacitance values, cost-effective	Power supplies, voltage smoothing, lower-frequency applications
Microwave Capacitors	Ultra-low ESR, ultra-low ESL, high SRF, precision components	High performance in very high-frequency and microwave bands	Microwave circuits, radar, satellite communications, millimeter-wave systems
Polymer Capacitors	Low ESR, high capacitance, stability over a wide voltage range	High ripple current handling, reliable in high temperatures	Power decoupling, smoothing in RF power circuits, power supplies

Capacitors for High Frequency Applications: Manufacturers

The companies below manufacture capacitors designed for high-frequency applications across various industries.

Companies that Manufacture Capacitors for High Frequency Applications
Company	Location	Capacitor Types
Vishay Intertechnology	Malvern, PA	Multilayer ceramic, microwave capacitors
Murata Manufacturing	Kyoto, Japan	Ceramic capacitors, microwave capacitors
KEMET Electronics	Fort Lauderdale, FL	Ceramic, tantalum, film, polymer
AVX Corporation	Fountain Inn, SC	Ceramic, tantalum, film
TDK Corporation	Tokyo, Japan	Ceramic capacitors, RF capacitors
Panasonic Corporation	Osaka, Japan	Ceramic, film, tantalum, polymer
Würth Elektronik	Niedernhall, Germany	Ceramic capacitors, SMD capacitors
Johanson Technology	Camarillo, CA	ceramic capacitors
ATC (American Technical Ceramics)	Huntington Station, NY	Multilayer capacitors, single-layer capacitors
Knowles Precision Devices	Cazenovia, NY	Multilayer, microwave ceramic capacitors

When selecting the right capacitors for high frequency applications, it is important to use accurate schematic symbols and PCB footprints in your design to ensure quality, efficient board builds. The best option for meeting this requirement is to rely on the industry’s leading comprehensive electronics search engine by ULtra LIbrarian, which provides manufacturer-verified CAD models, component data and information, and design tips, vendor listings, and other tools to help you get all the tech data you need. Working with Ultra Librarian will set up your team for success and ensure streamlined and error-free design, production, and sourcing. Register today for free.
