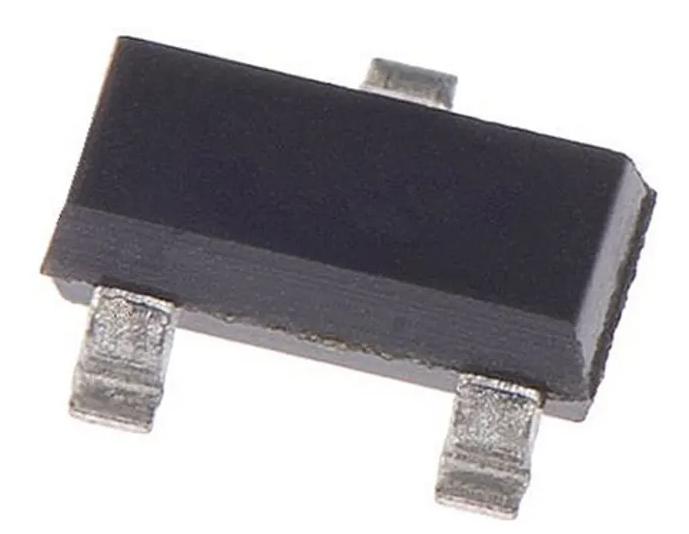

Diodes Inc.’s ZXMP6A13FTA MOSFET
A metal-oxide-semiconductor field-effect transistor (MOSFET) is a type of transistor, the most commonly used active component, that amplifies or switches electronic signals. It consists of three main terminals: the gate, drain, and source, with a fourth terminal, the body, often connected to the source. A MOSFET controls the current flow between the drain and source using a voltage applied to the gate. An insulating oxide layer separates the gate from the channel, enabling efficient control while consuming minimal power.
Due to their high speed, low power consumption, and ability to handle large currents, MOSFETs are indispensable in modern electronics. They are essential elements of microcontrollers and microprocessors, memory devices, and power management circuits. MOSFETs are used as switches in DC-DC converters, motor drivers, and power supplies to improve energy efficiency. Additionally, they are helpful in analog circuits, such as amplifiers and audio systems, and RF applications, such as communication transmitters. According to Diodes Inc.’s ZXMP6A13FTA datasheet, the component is a MOSFET that combines low on-resistance with fast switching speed.
ZXMP6A13FTA Datasheet: Features and Applications
The ZXMP6A13FTA is a feature-rich MOSFET used in high-efficiency power management applications, as listed below.
As shown above, the ZXMP6A13FTA has a range of applications, including DC-DC converter, power management, relay and solenoid driving, and motor control.
ZXMP6A13FTA: Parameters and Specifications
Understanding an electronic component’s maximum ratings and thermal characteristics ensures reliable operation, longevity, and safety. Exceeding maximum voltage, current, or power ratings can lead to component failure, potential hazards like overheating or fire, and damage to the overall system.
Thermal characteristics, such as power dissipation and thermal resistance, help designers effectively manage heat dissipation. Reducing heat generation prevents performance degradation and ensures stable operation under varying conditions. By staying within these limits, engineers can design more efficient, durable, and safe electronic systems.

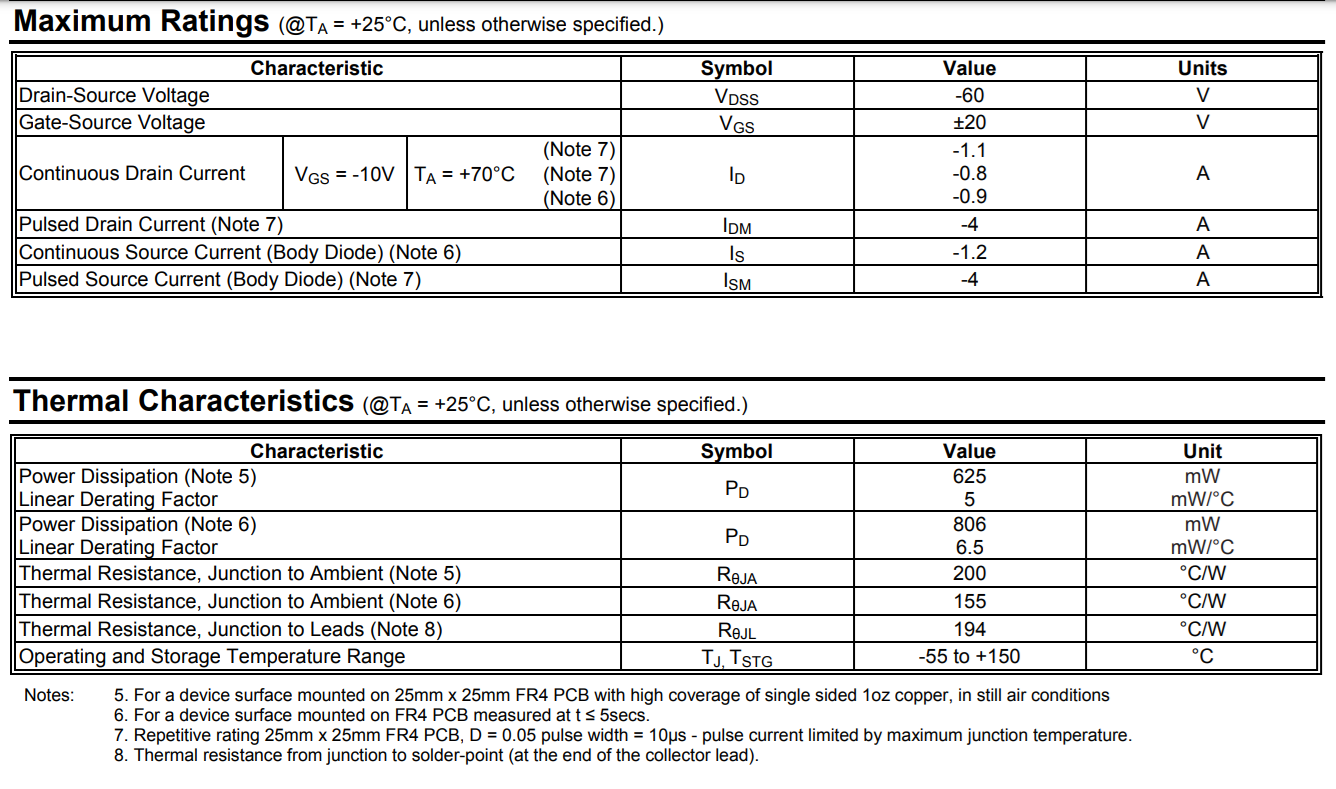

According to the datasheet, ZXMP6A13FTA has the following maximum ratings and thermal characteristics:
ZXMP6A13FTA Maximum Ratings and Thermal Characteristics

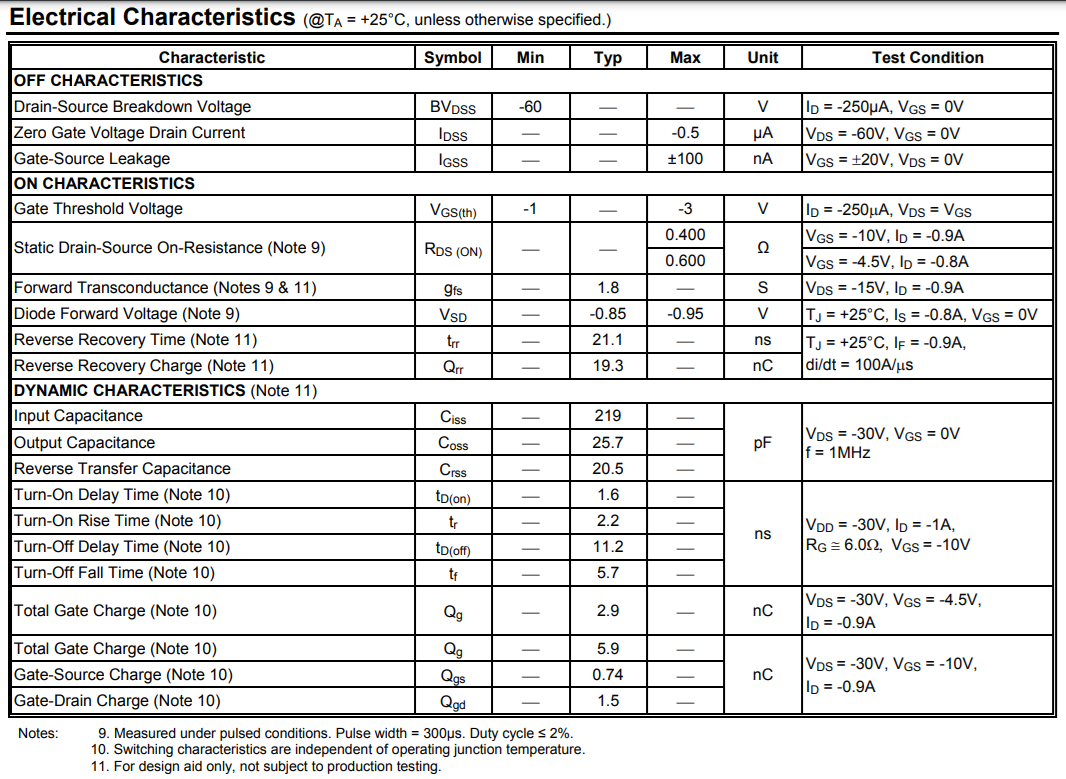

ZXMP6A13FTA features a low gate threshold voltage of -1V to -3V, allowing operation with low-voltage control signals. Additionally, it has a fast switching speed and low gate charge, making it ideal for high-efficiency switching applications in battery-powered devices and DC-DC converters. Below are its electric characteristics as described in the datasheet.
ZXMP6A13FTA Electrical Characteristics
An electronic component’s pinout and equivalent circuit diagram are essential for understanding how it functions within a circuit. A pinout shows the physical pins of the component and their respective functions, ensuring correct connections during circuit design and assembly. This prevents wiring errors and ensures compatibility with other components.
An equivalent circuit diagram provides a simplified electrical representation of the component’s internal structure, showing how different pins interact. Performing this analysis is essential for troubleshooting, designing circuits that perform optimally, and analyzing behavior. These elements help engineers and designers integrate components effectively and avoid costly mistakes.

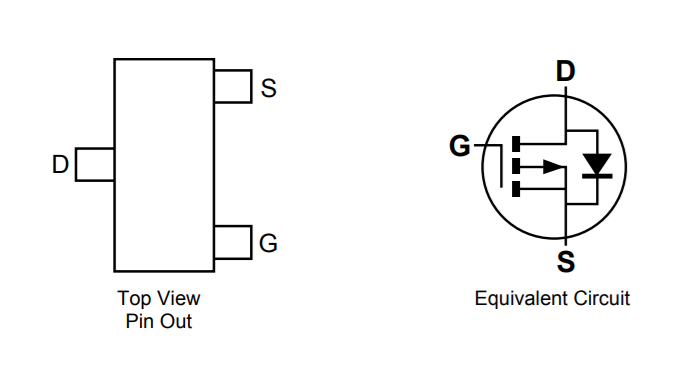

The component pinout and equivalent circuit, provided in the ZXMP6A13FTA datasheet, are shown below:
ZXMP6A13FTA Pin Out and Equivalent Circuit Diagram
Optimizing ZXMP6A13FTA PCBA Design
A datasheet with accurate CAD models will ensure optimal PCBA development and the best implementation of the ZXMP6A13FTA.
Diodes Inc.’s ZXMP6A13FTA CAD data from UL
A collaborative and supportive PCB design and manufacturing process is crucial to the efficient development of electronic products. The first step towards ensuring the accuracy of CAD data and models is to use a reliable component library.
If you’re looking for CAD models for common components or design tips, such as how to best use the ZXMP6A13FTA datasheet, Ultra Librarian compiles all your sourcing and CAD information in one place.
Working with Ultra Librarian sets up your team for success to ensure streamlined and error-free design, production, and sourcing. Register today for free.
If you’re looking for any of our component footprints or models, we have readily available and free options for you and your design team. Search our library for the solution you’ve been looking for.
